Projects

A selection of civil engineering and construction works delivered for the UK's main contractors.

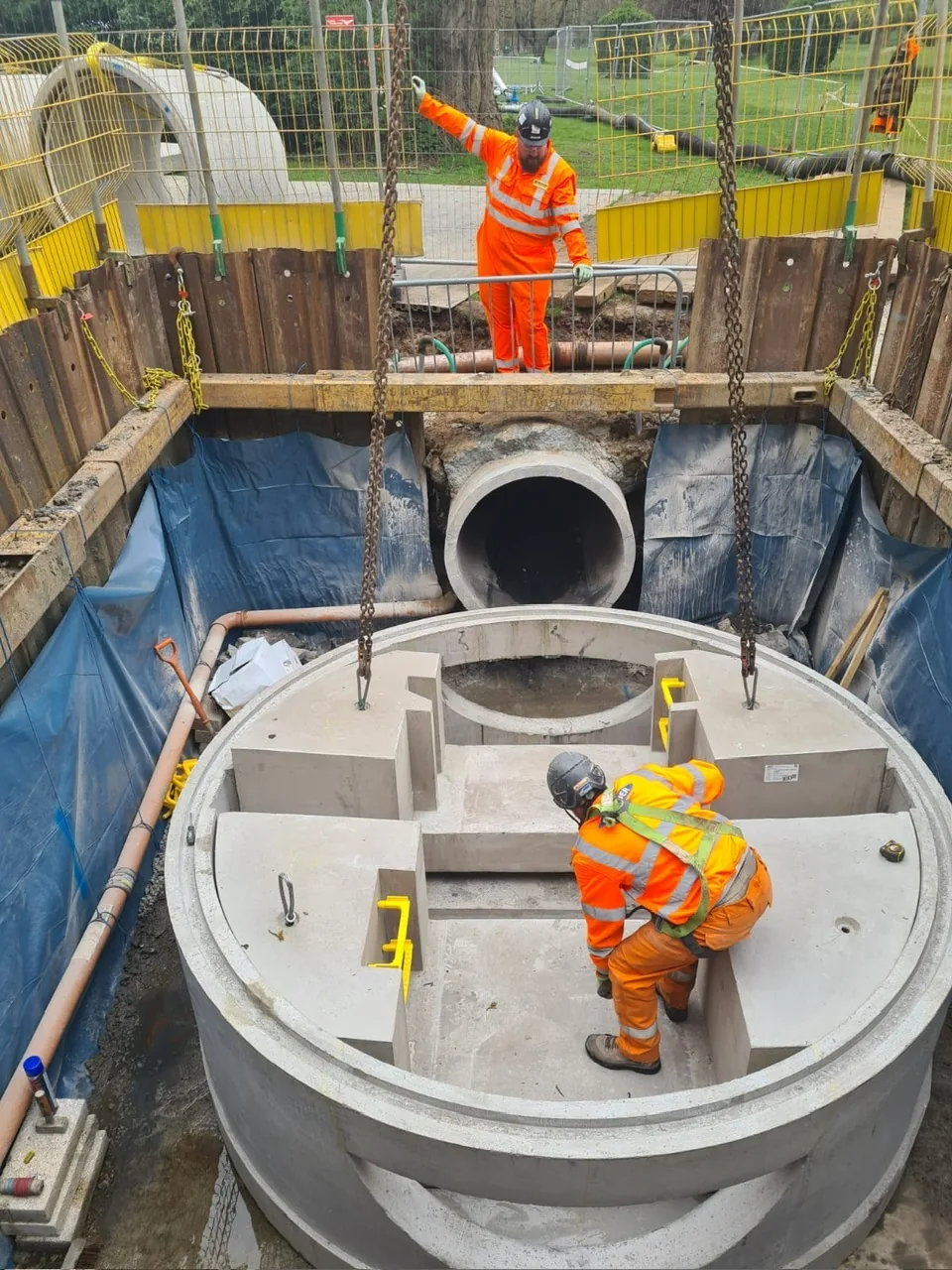

Workers lowering precast concrete manhole into sheeted excavation on Kilburn to Marehay rising main project, Derbyshire

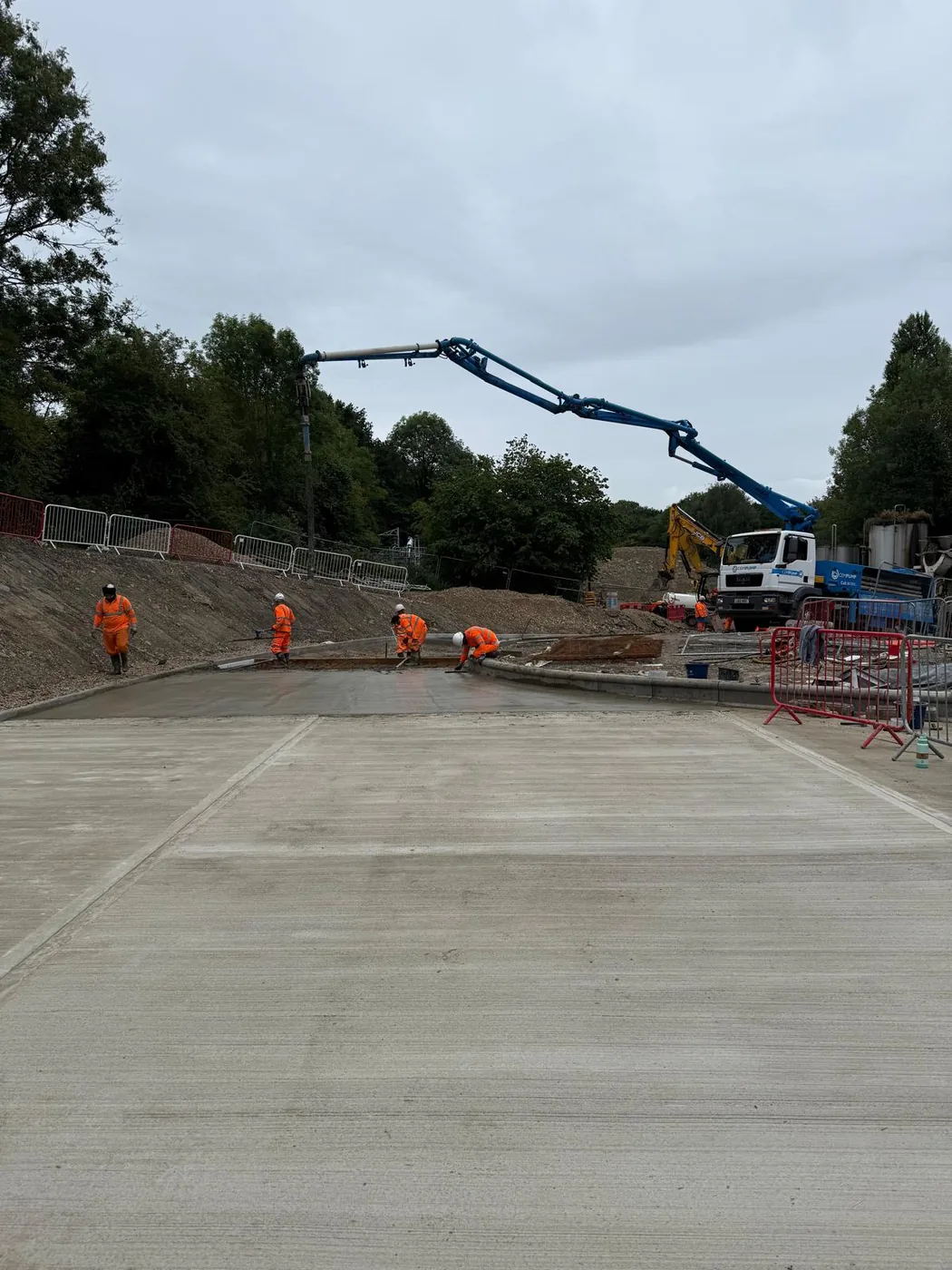

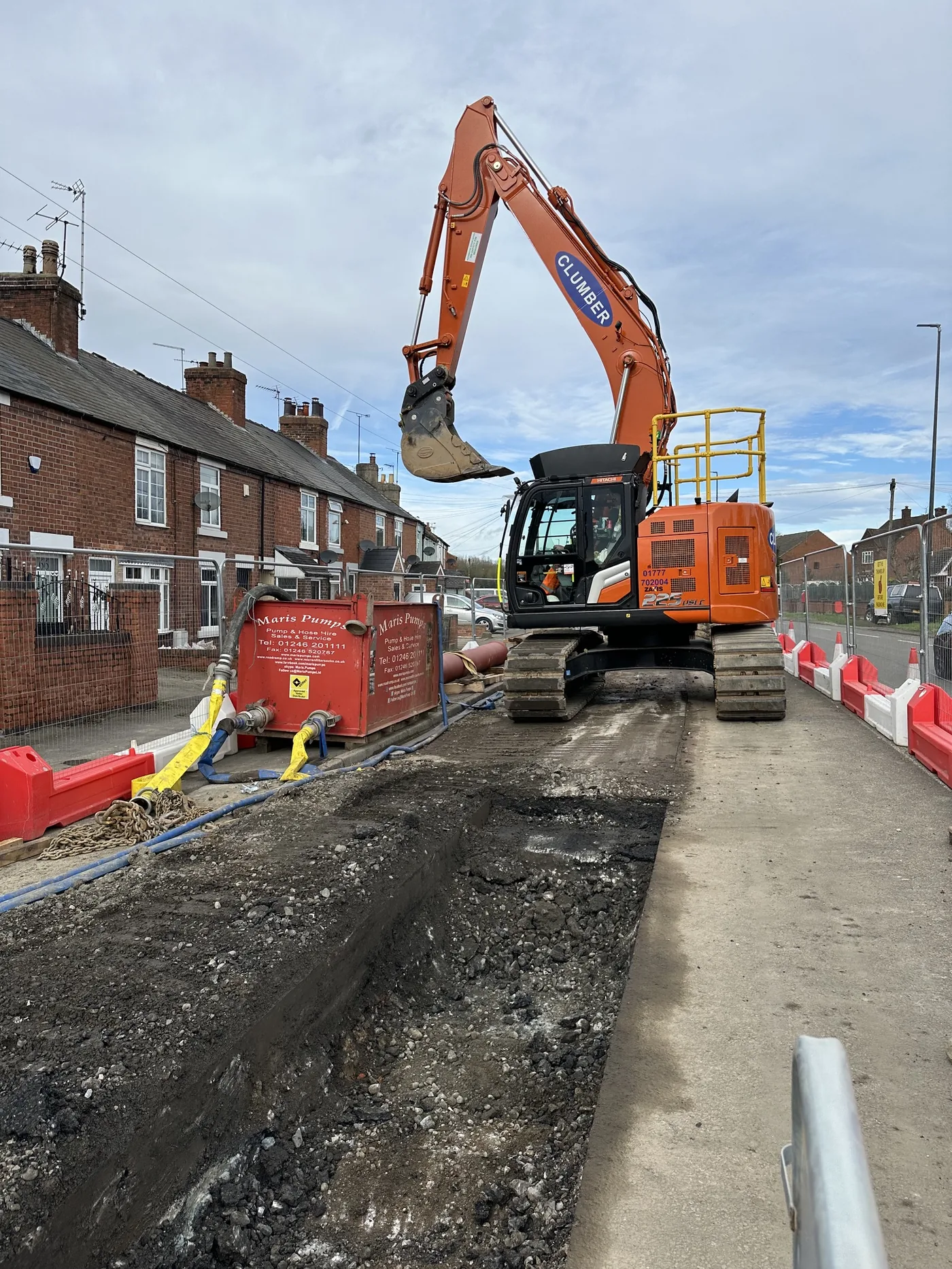

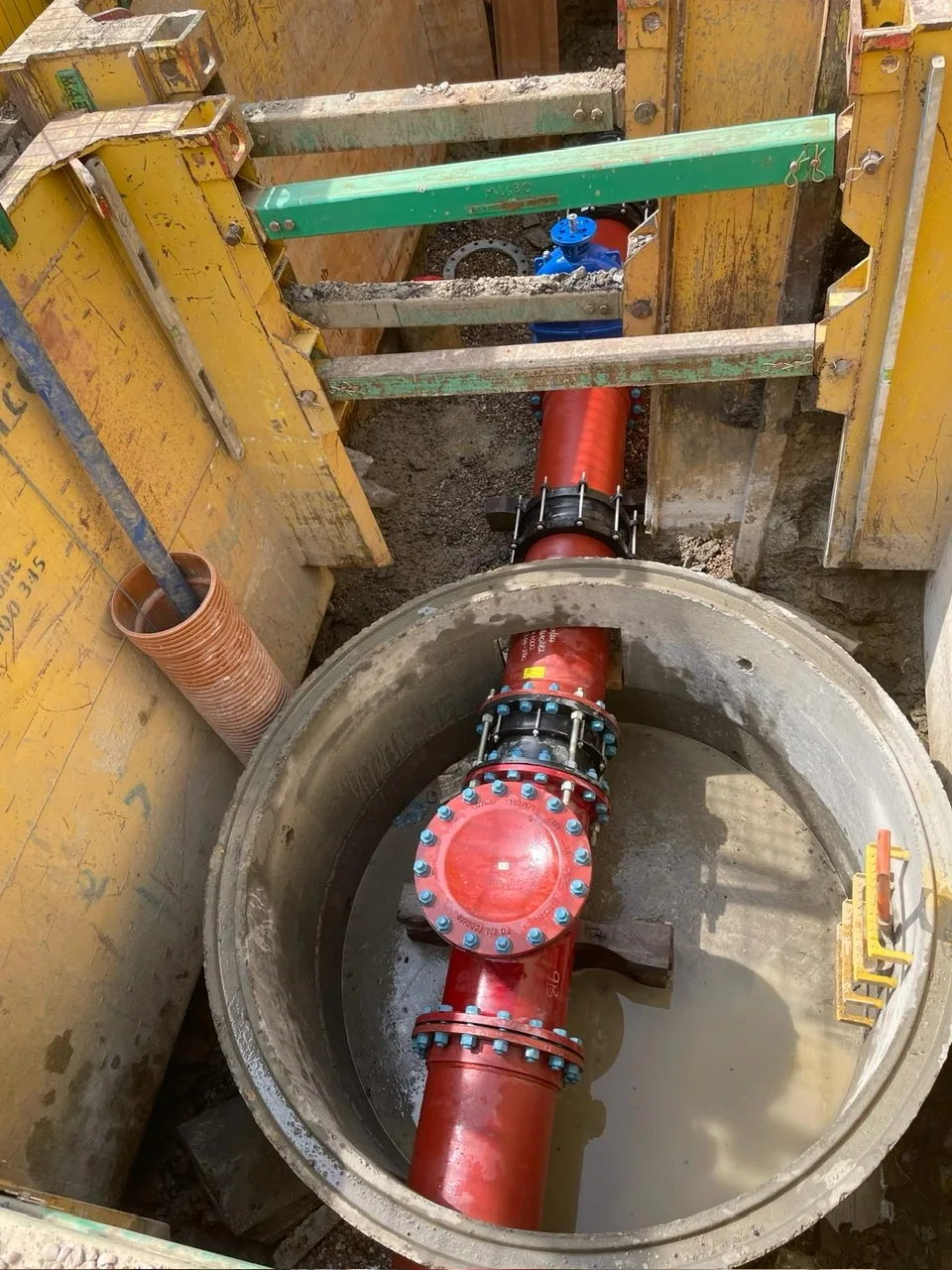

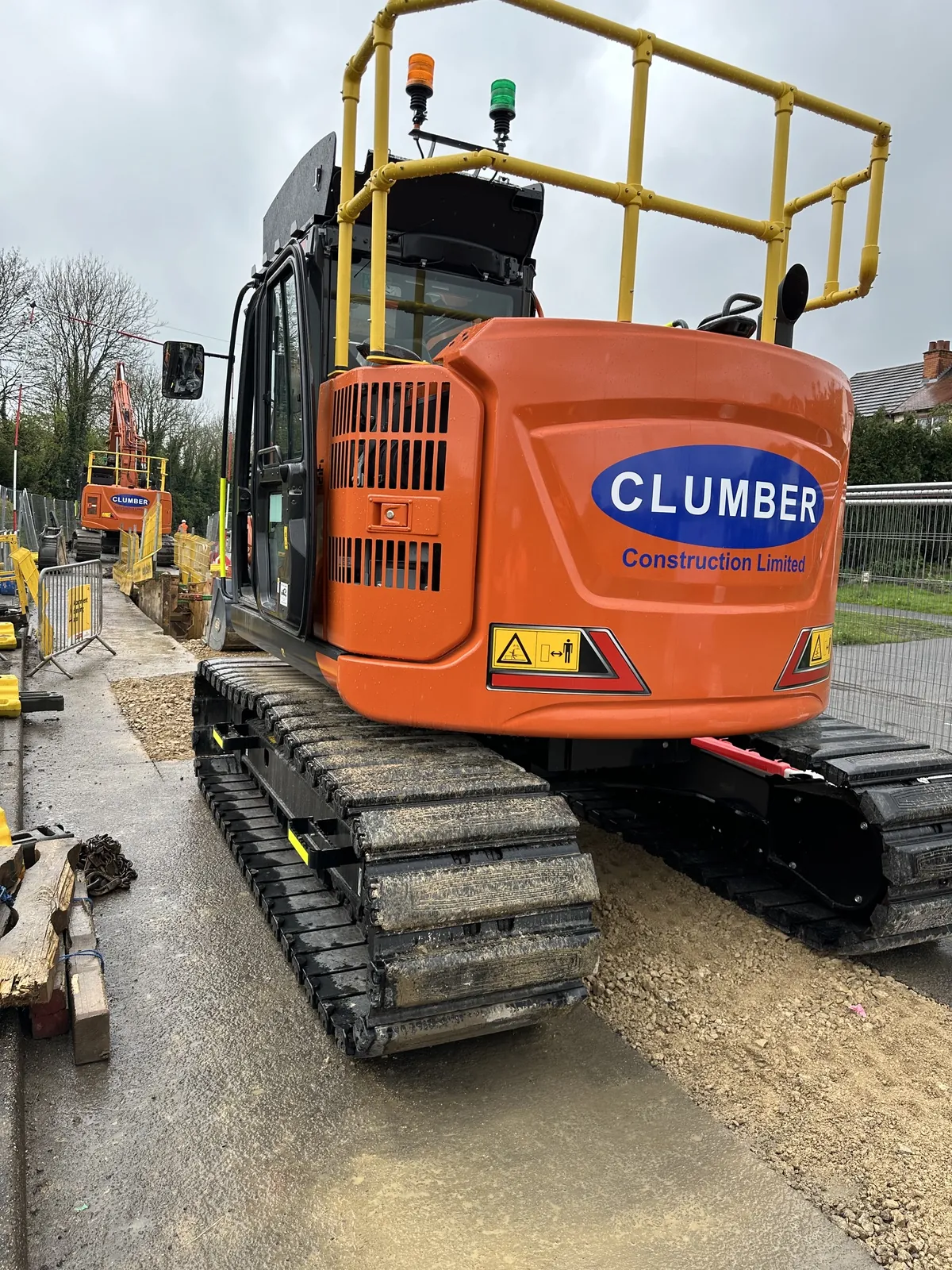

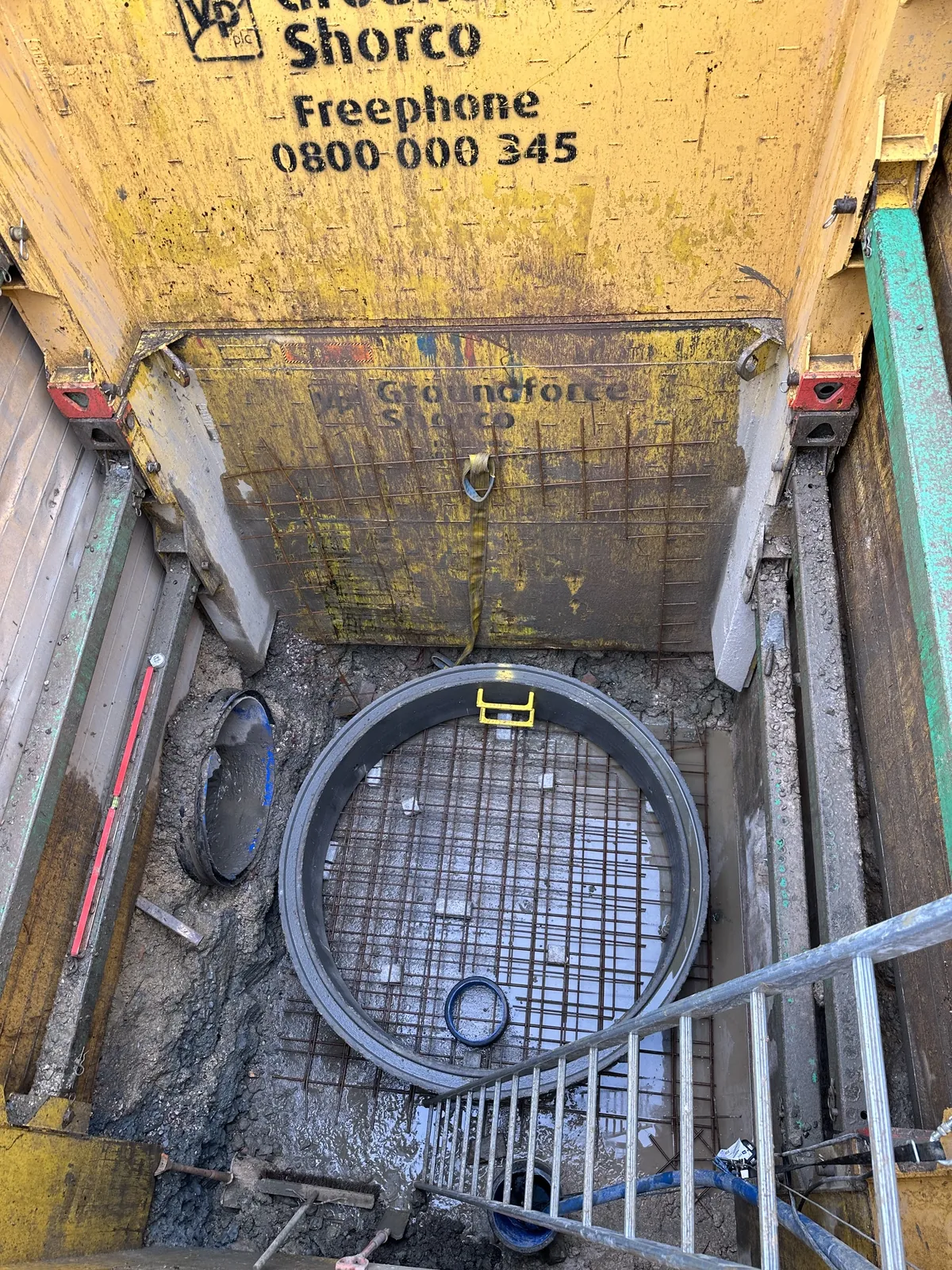

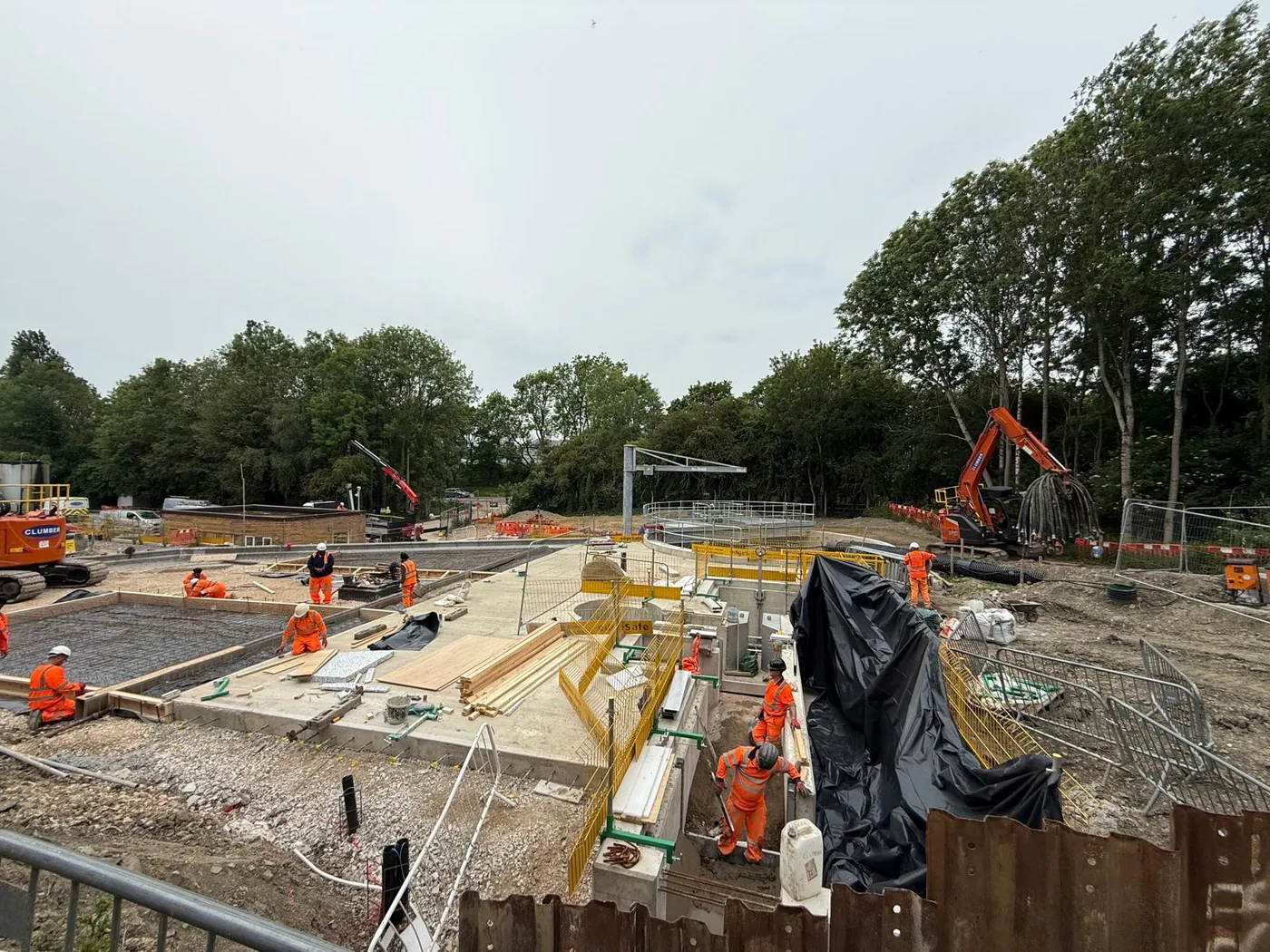

Ductile iron valve chamber installation, Kilburn to Marehay rising main Highway trench excavation for rising main pipework, Derbyshire Clumber Construction excavator on pipeline civil engineering works HDD drive pit construction, Kilburn to Marehay rising main Groundworks and construction at Kilburn to Marehay sewage treatment works, Derbyshire Concrete road construction with pump at Kilburn to Marehay rising main scheme, Derbyshire
Infrastructure Drainage Highways & Earthworks

Kilburn to Marehay Rising Main

Location
Derbyshire
Duration
18 months
Pipework
400–500mm ductile iron
Test Pressure
6 Bar

Installation of 4.5km of ductile iron pipework in highways with permanent tarmac reinstatement. Includes construction of Horizontal Directional Drilling drive and reception pits, with all connection works hydrostatically pressure tested to 6 Bar. Connected to new sewage pumping station and upgraded sewage treatment works.

Large diameter pipes being concrete-encased in deep sheeted excavation during Nuneaton sewage rising main installation, Warwickshire

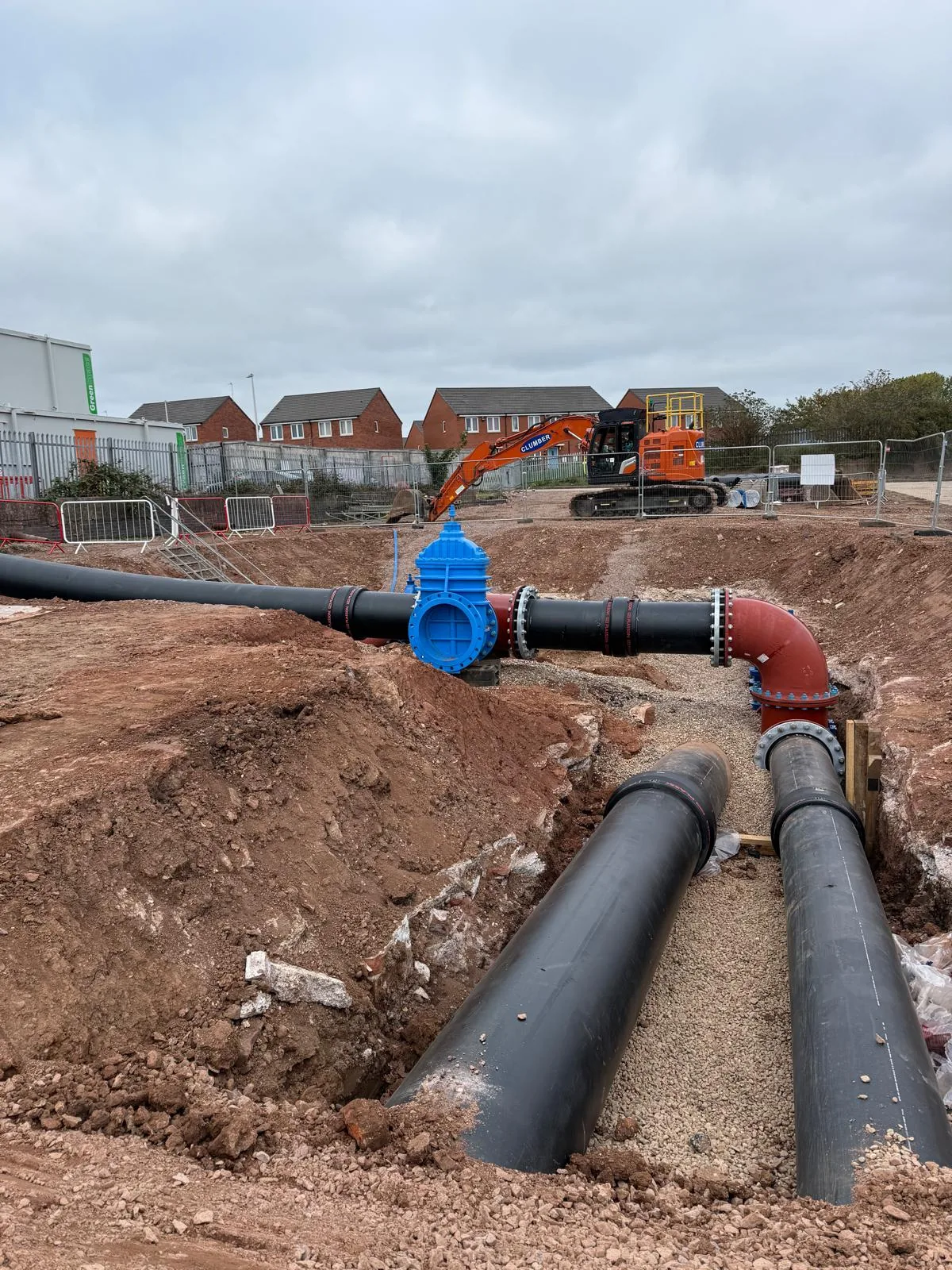

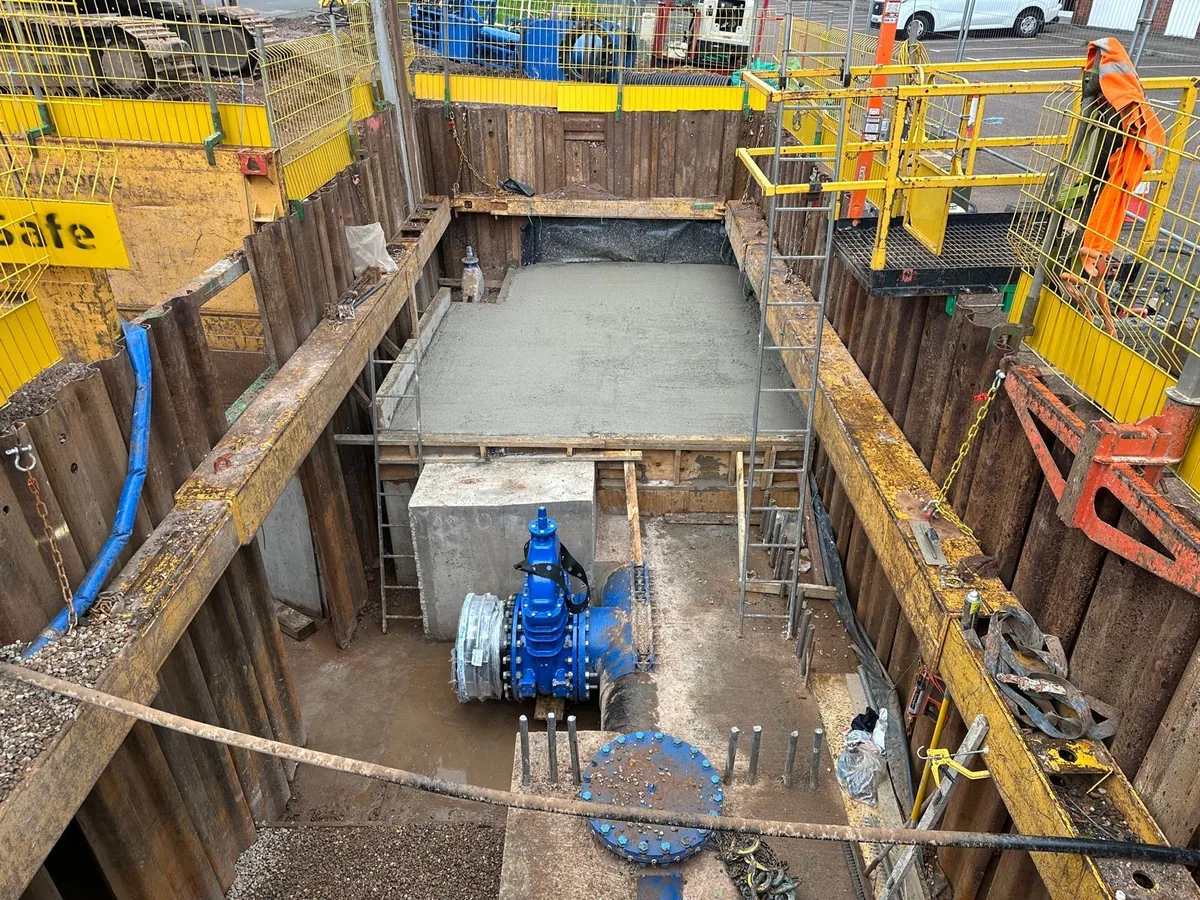

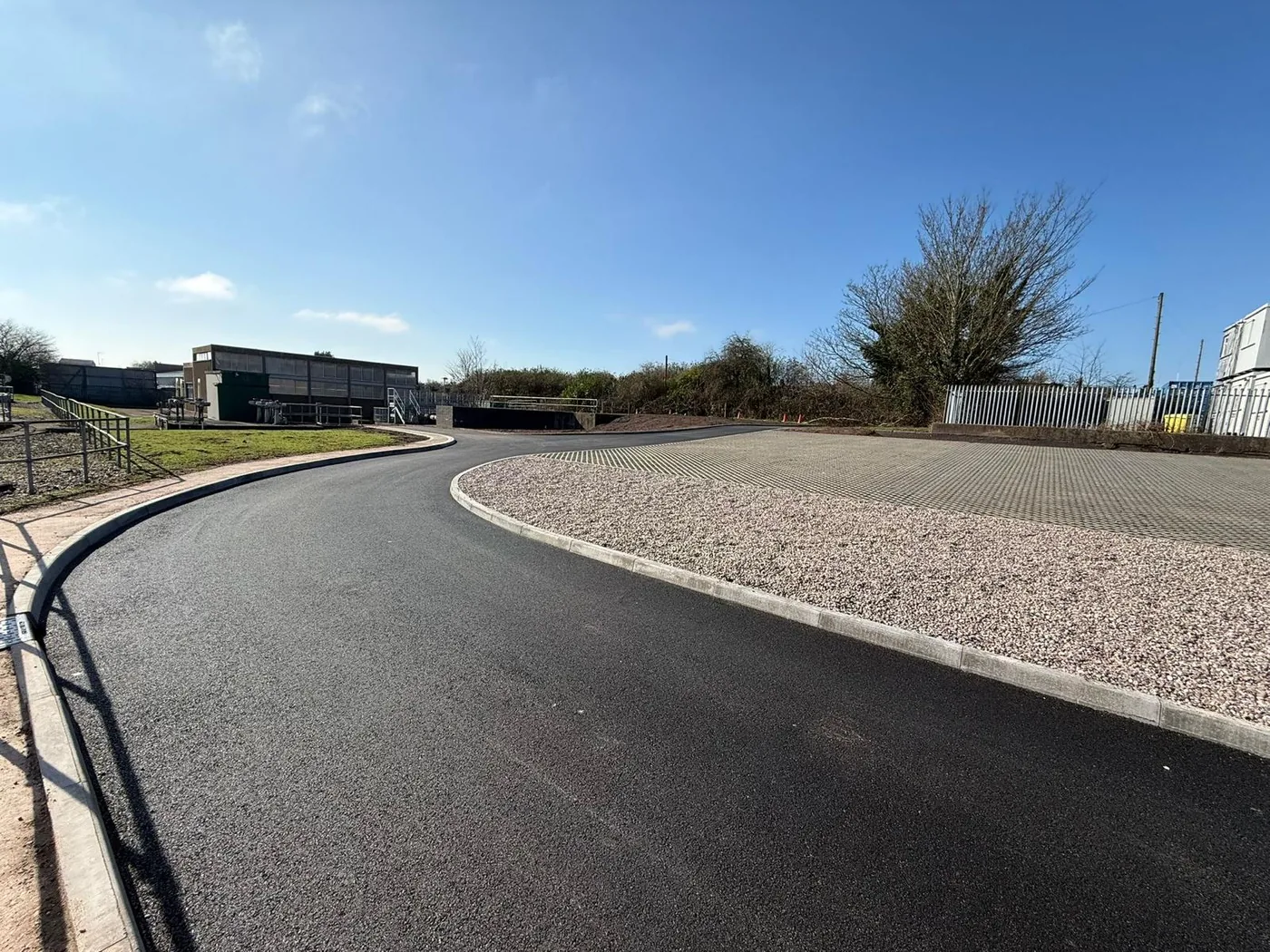

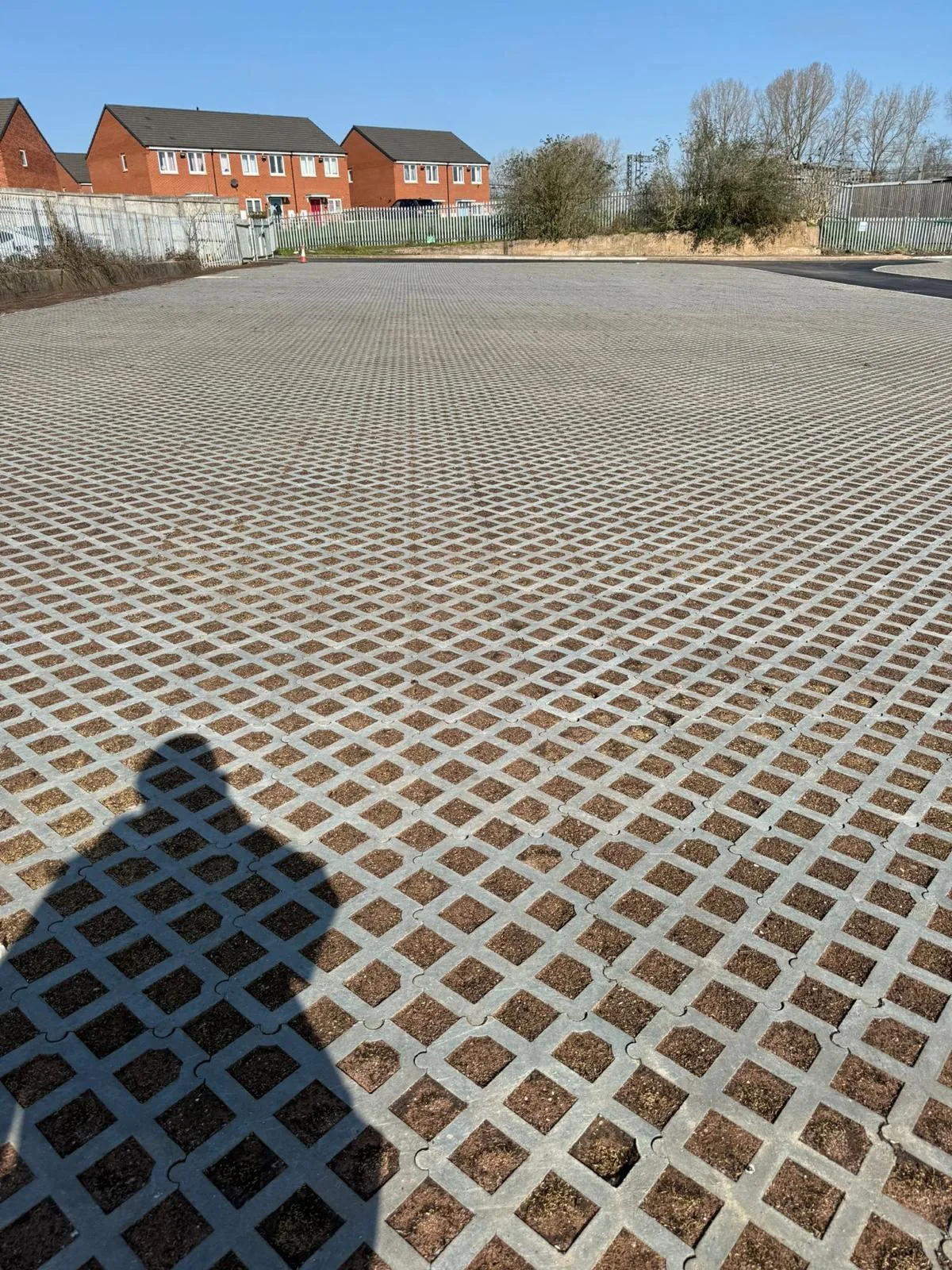

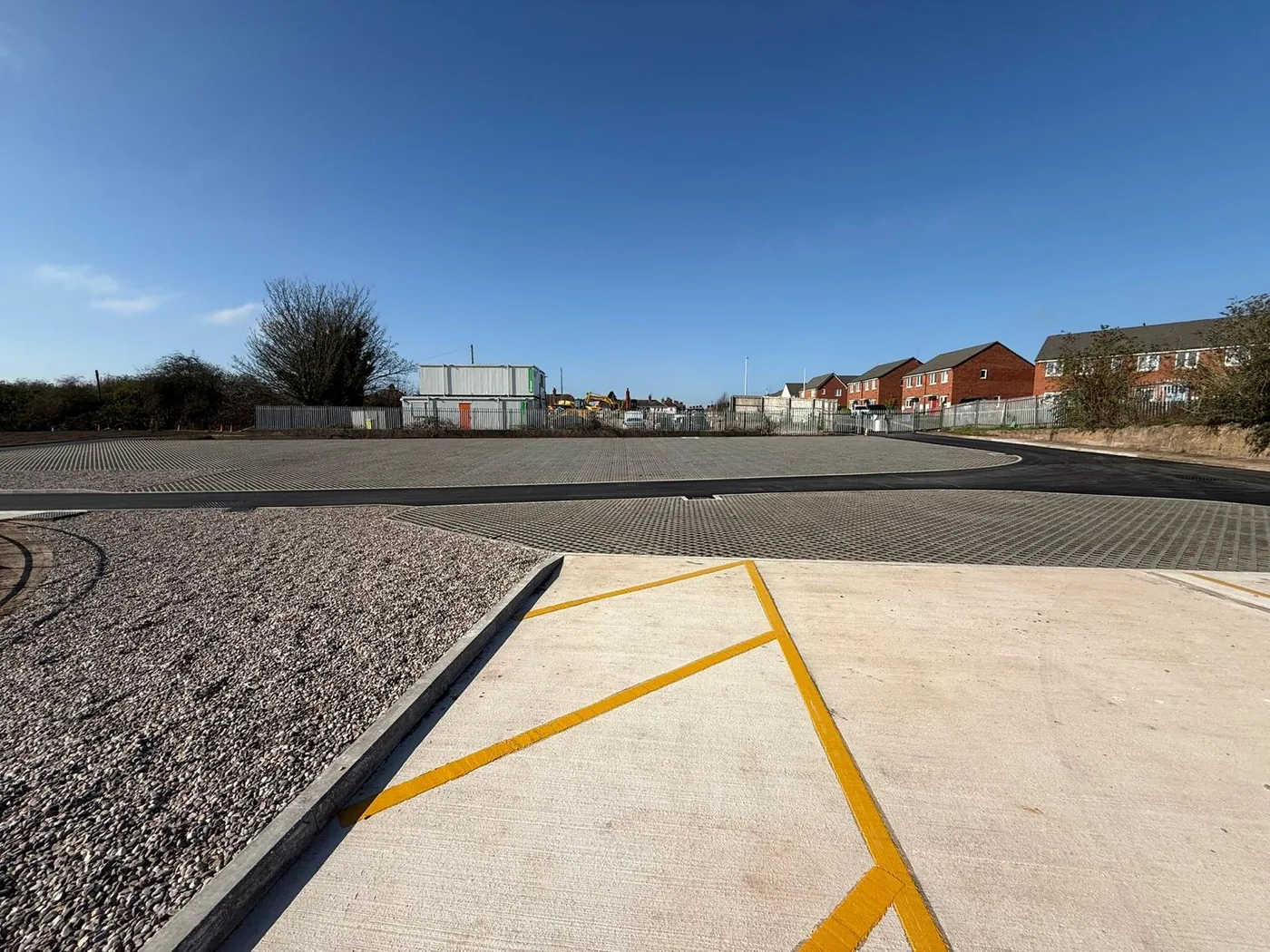

Twin 400mm and 600mm rising mains with gate valve, Nuneaton STW Line-Stop connection pit with blue isolator valve, Nuneaton New tarmac access road at Nuneaton sewage treatment works Completed block paving parking area at Nuneaton sewage treatment works Block paving grass reinforcement grid close-up, Nuneaton STW
Infrastructure Drainage Highways & Earthworks

Nuneaton Sewage Rising Mains

Location
Nuneaton, Warwickshire
Duration
6 months
Pipework
400mm & 600mm
Test Pressure
9.5 Bar

Environmentally sensitive installation of 600mm and 400mm new rising mains with online connections to existing mains in a Line-Stop pit. Installed over 1km from the existing pumping station, operating at 850 litres per second. Includes upgrade of roads and new parking areas within the STW.

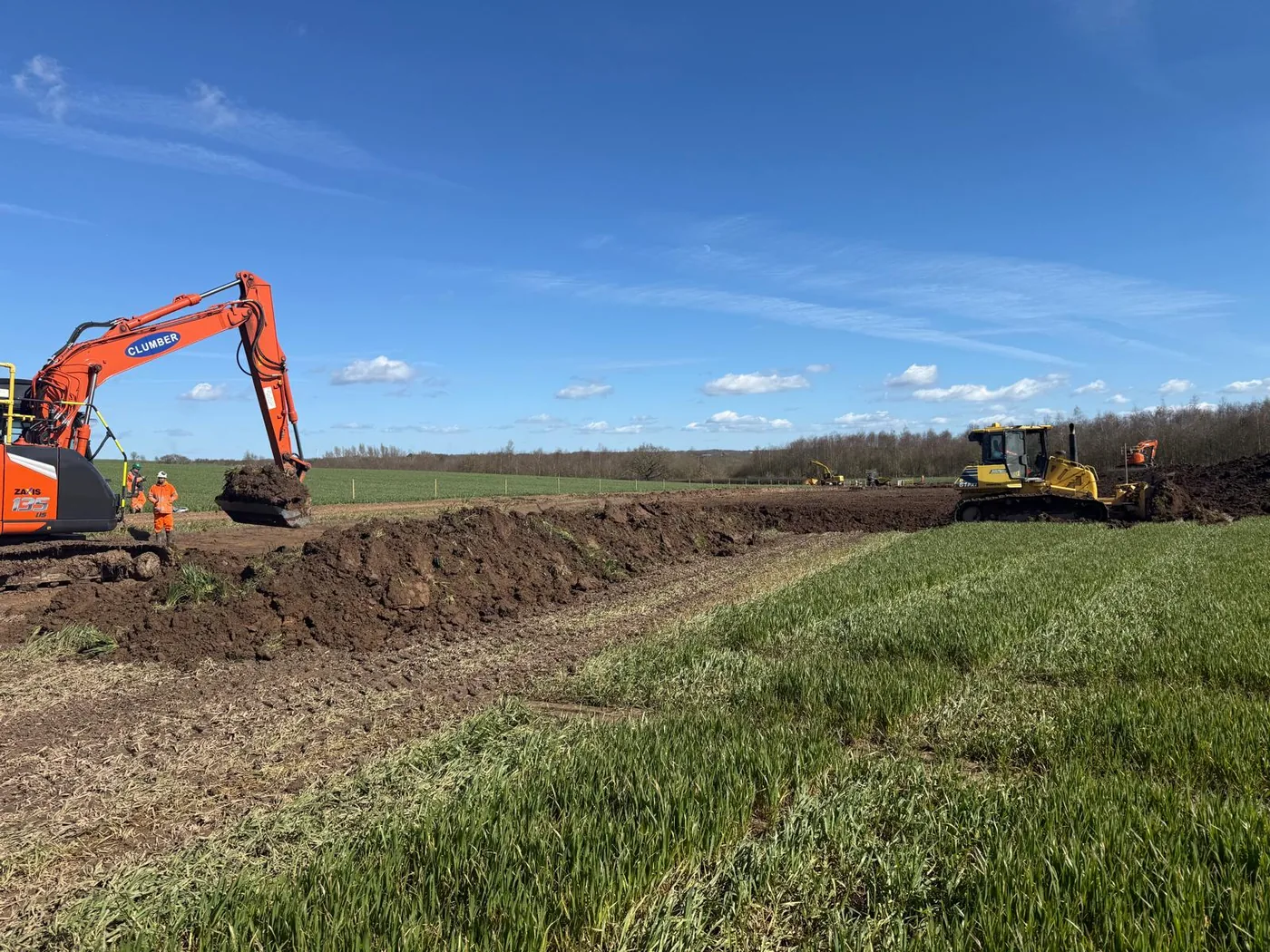

Clumber Construction excavator and bulldozer trenching through farmland on Packington Final Effluent Rising Main, Leicestershire

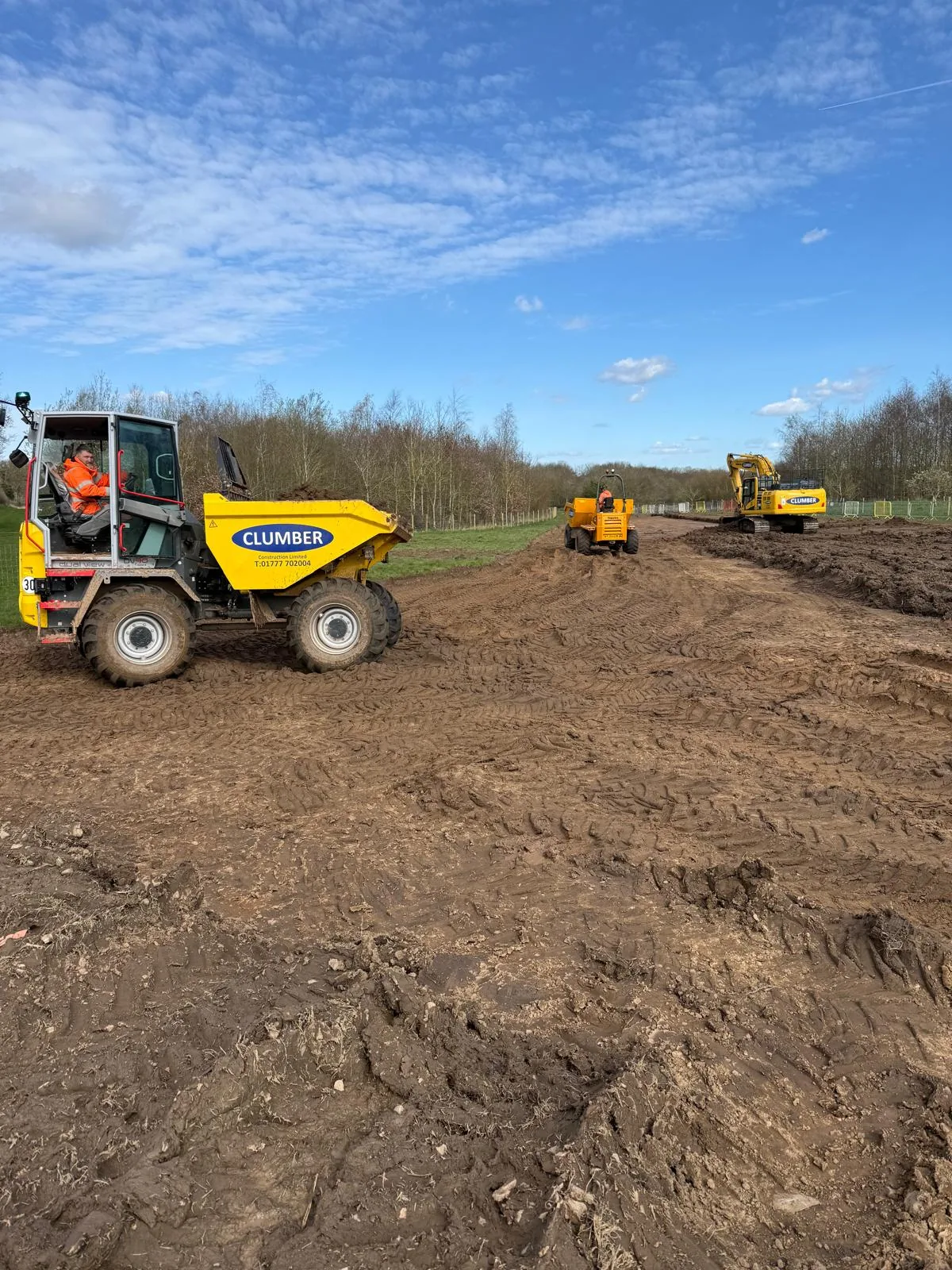

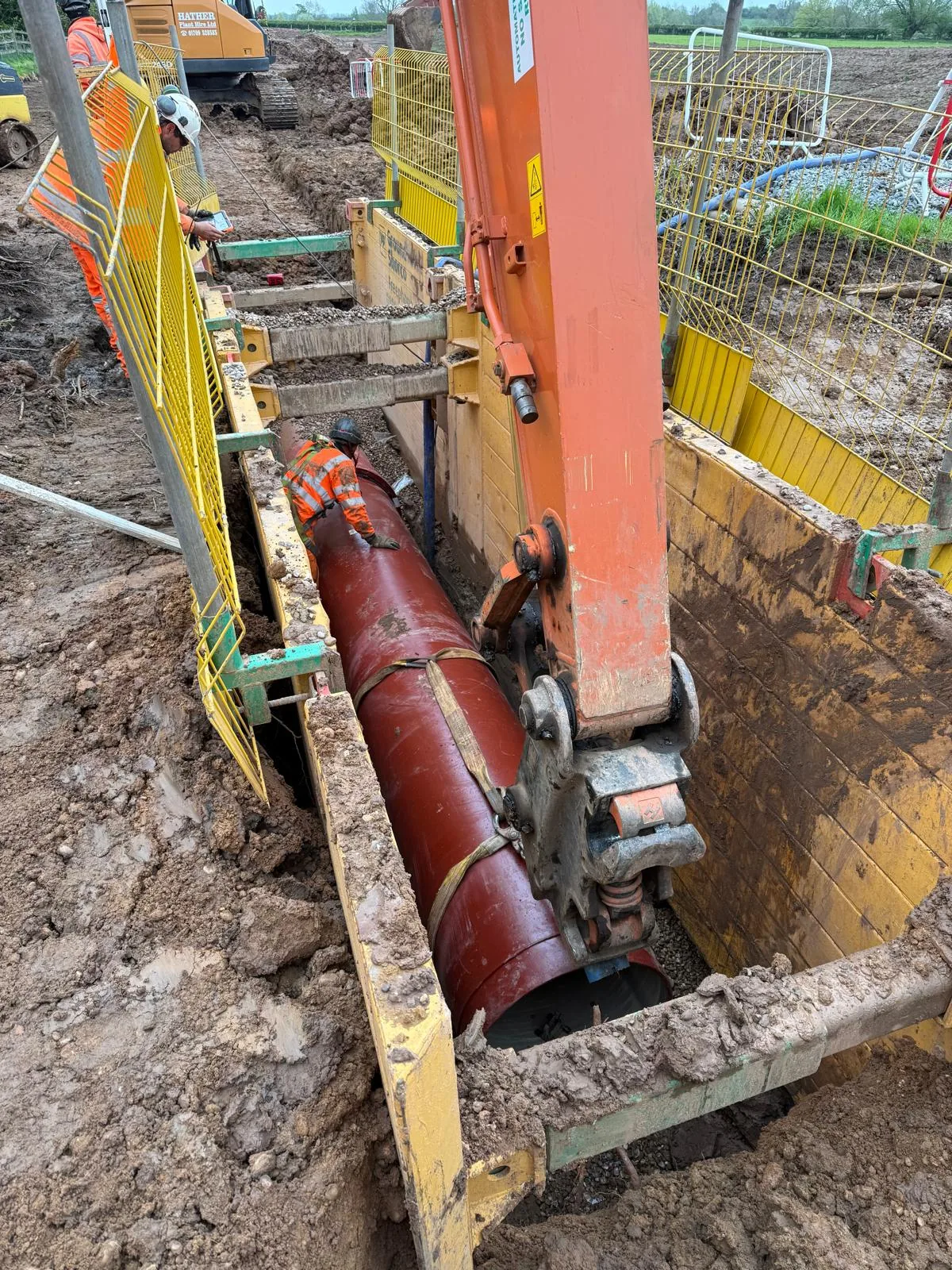

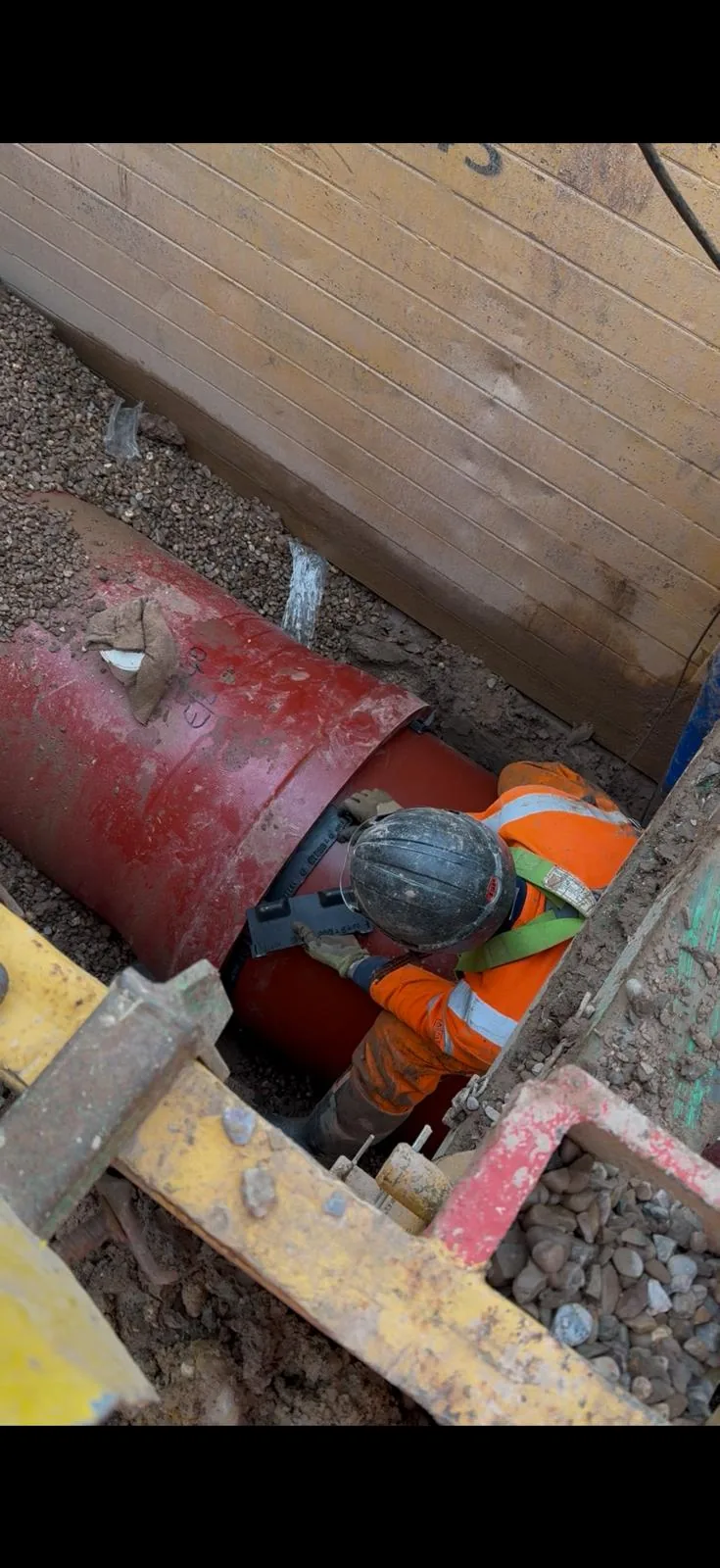

Clumber dumper trucks and excavator carrying out earthworks on Packington rising main route 800mm ductile iron pipe being installed in sheeted trench, Packington Worker fitting joint on 800mm ductile iron rising main pipe, Packington
Infrastructure Drainage Highways & Earthworks

Packington Final Effluent Rising Main

Location
Packington, Leicestershire
Duration
5 months
Pipework
800mm ductile iron
Test Pressure
6.5 Bar

Installation of 800mm ductile iron rising main over 2km through fields and roads, forming part of a 23km total scheme. Associated chambers with air valves, washouts and roll-over chambers, all pressure tested to 6.5 Bar. Full reinstatement of highways and farmland.

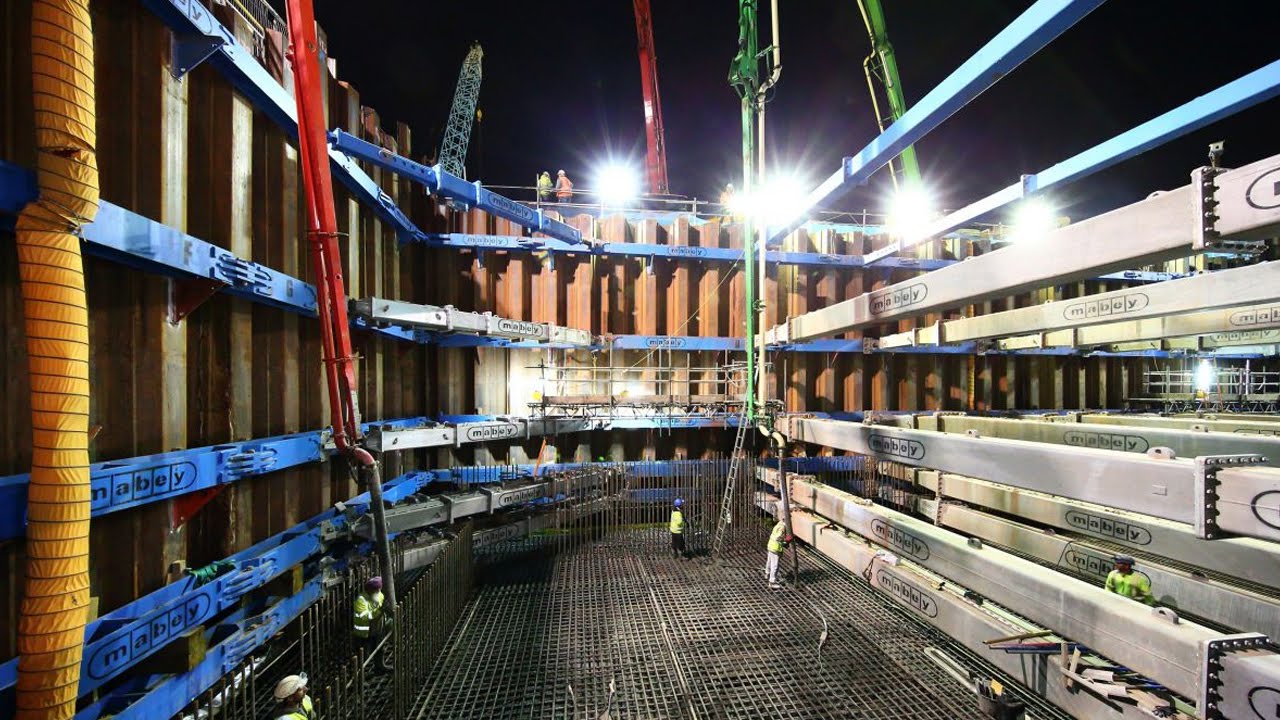

Derbyshire Waste Treatment Centre reception pit — steel sheet piled cofferdam installation time lapse, Derby
Infrastructure Highways & Earthworks

Derbyshire Waste Treatment Centre — Reception Pit

Location
Derby
Dimensions
39m × 19.2m × 12.3m deep
Structure
Steel sheet piled cofferdam
Support
Waling beam & propping

Clumber installed the complete temporary works package within the cofferdam excavation — five support frames and cross members — and carried out all enabling earthworks for the construction of the new waste disposal facility.
